| Harriol-Single cable |
|
|
|
|
| |
|
|
|
|

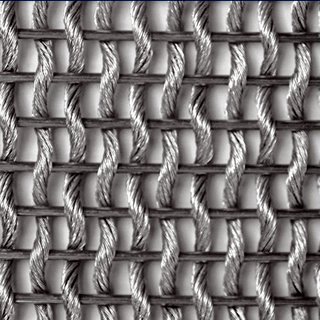

SCBL-2520-6081 |
| open area: |
37% |
| warp cable: |
2.5mm |
| weft rod: |
2mm |
| warp pitch: |
6mm |
| weft pitch: |
8mm |
| thicknes: |
7mm |
| materials: |
stainless steel |
| application: |
wall partition |
|
|

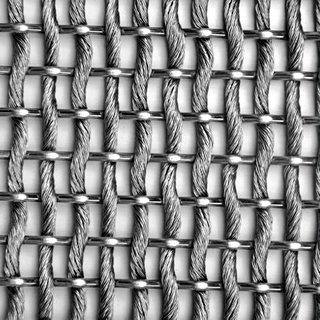

SCBL-2520-6082 |
| open area: |
37% |
| warp cable: |
2.5mm |
| weft rod: |
2mm |
| warp pitch: |
6mm |
| weft pitch: |
8mm |
| thicknes: |
7mm |
| materials: |
stainless steel |
| application: |
wall partition |
|
| |
|
|
|
|

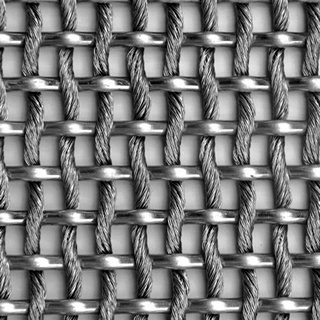

SCBL-3030-50100 |
| open area: |
21% |
| warp cable: |
3mm |
| weft rod: |
3mm |
| warp pitch: |
5mm |
| weft pitch: |
10mm |
| thicknes: |
9mm |
| materials: |
stainless steel |
| application: |
wall partition |
|
|

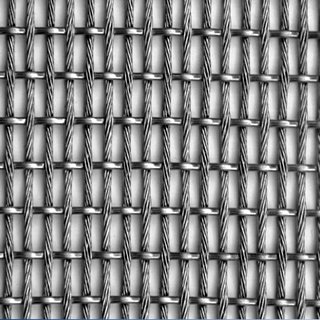

SCBL-1012-3060 |
| open area: |
50% |
| warp cable: |
1mm |
| weft rod: |
1.2mm |
| warp pitch: |
35mm |
| weft pitch: |
6mm |
| thicknes: |
3.5mm |
| materials: |
stainless steel |
| application: |
wall partition |
|
| |
|
|
|
|

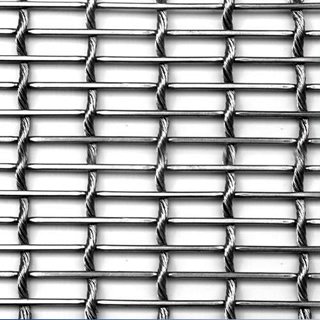

SCBL-2520-21080 |
| open area: |
74% |
| warp cable: |
2.5mm |
| weft rod: |
2mm |
| warp pitch: |
21mm |
| weft pitch: |
8mm |
| thicknes: |
5mm |
| materials: |
stainless steel |
| application: |
wall partition |
|
|
|
|
| |
|
|
|
|
