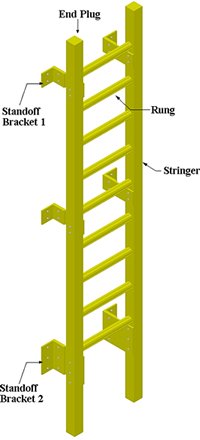

MinLadder
MinLadder and ladder cages mounted on the sides of tanks and buildings are very common in wide range of industries.
MinLadders are in a standard 19" rung width and spacing 12". Variety of ladder lengths can be produced as practical. Custom colors and custom designed ladders and access cages can be fabricated upon request. Ladders can be shipped pre-assembled for installation at site

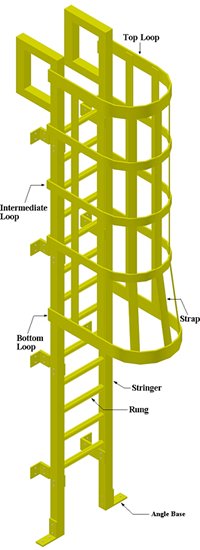

Ladder and Cage Systems

Specification
Stringer 2” x 1/4” SHS
Rung 1-1/4” Flute Tube
Intermediate Loop 2” x 1/4” Strip
Top and Bottom Loop 3” x 1/4” Strip
Strap 2” x 3/16” Strip
Standoff Bracket 1 4” x 3/8”(T) x 4”(L) Angle
4” x 10” x 3/8” (T) Plate
Standoff Bracket 2 4” x 3/8”(T) x 8”(L) Angle
8” x 10” x 3/8” (T) Plate
Base Angle 3” x 1/2” x 2” Angle
End Plug Molded End Cap

FRP Catladder
FRP Catladder
